SC9132 Insulating Conformal Coating — PCBA Wide-Temp, Anti-Aging, Chemical-Resistant, Fluorescent Protective Coating
Conformal coating series. PU, silicone, acrylic, UV-cure variants. Wide-temp, chemical-resistant, 85/85 200 h. RT or heat-cure with fluorescent visual identification.
PCBA modules, military-standard parts and automotive-grade parts — conformal coating, protection and insulation.
- Shore Hardness
- 60 Shore A–85 Shore D
- Temperature Range
- −60 °C–180 °C
- Cure Condition
- RT/heat/UV cure
- Viscosity @ 25 °C
- 400–3000 mPa·s
SCITEO Rigorous Standards: Qualified under GJB 150 environmental reliability testing by Zhenhua, CETC, and CAC, delivering mission-critical reliability.
Engineered as high-reliability domestic qualified alternatives for semiconductor and defense manufacturing clusters across Shanghai Zhangjiang, Xi'an, Chengdu, and Wuxi.
Specifications Don't Match Your Operating Conditions?
Only the baseline series is shown here. SCITEO's undisclosed archive holds formulations engineered for extreme environments. Contact us — our application engineers will match you precisely.
High Reliability Scenarios
Core positioning and partial application demonstration of this product under complex operating conditions.

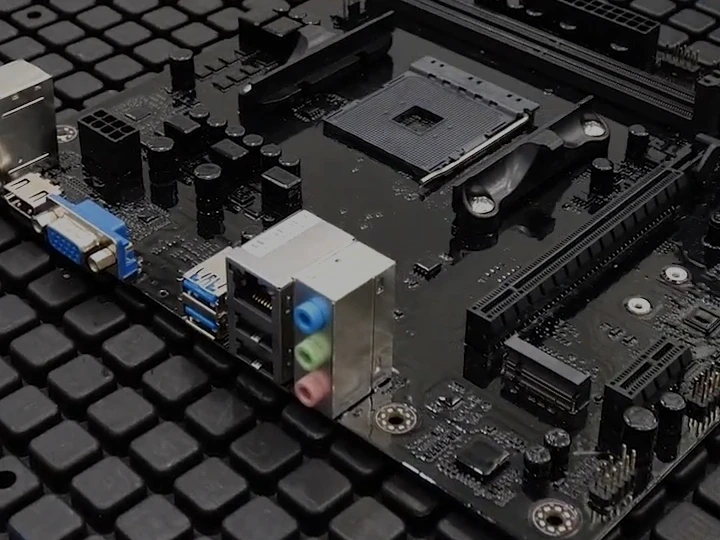

PCBA Conformal Coating

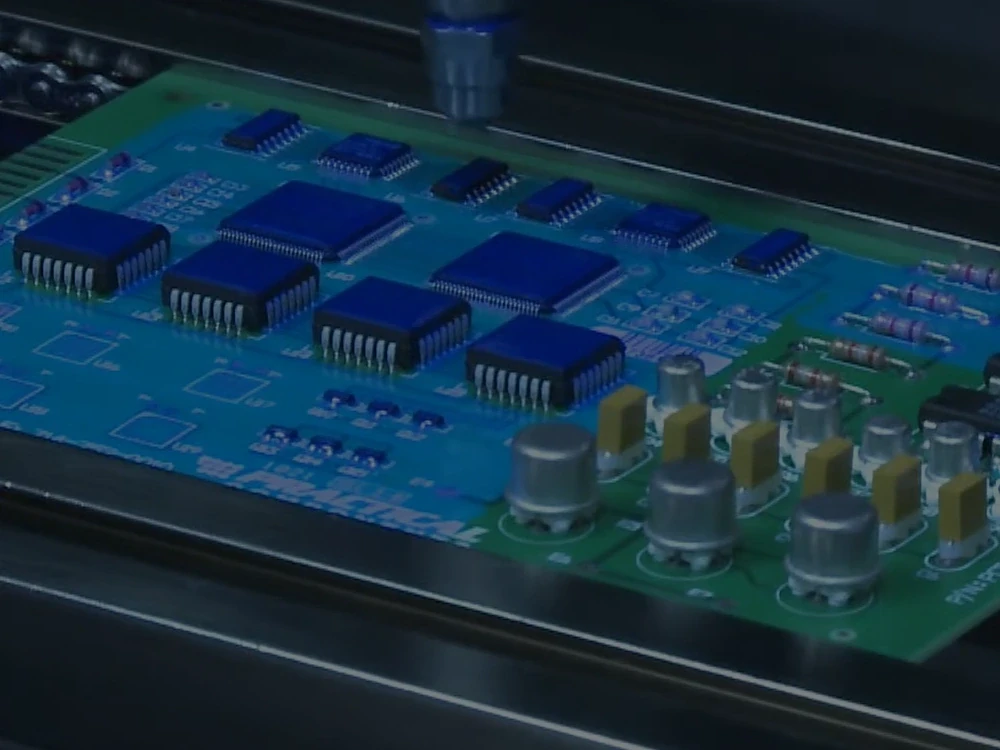

Military Component Coating

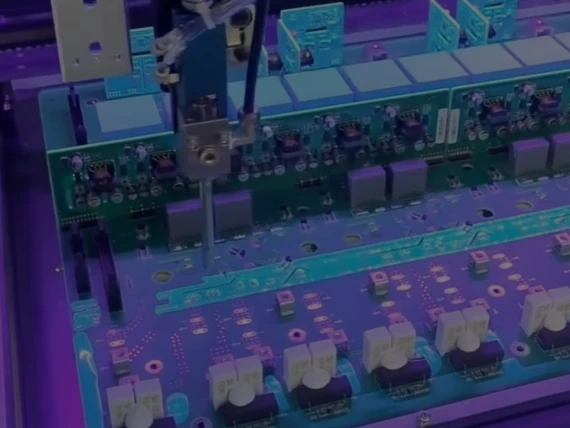

Automotive Parts Coating
Application Engineer FAQ
A structured brief from SCITEO covering physical properties, application standards, and related specifications.
What conformal coating types does SCITEO offer?
Three chemistries are available — polyurethane (PU), silicone, and acrylic; three cure modes — ambient, heat, and UV; with hardness ranging from ultra-soft to high and appearance from clear to black.
Differences between the three cure types?
UV is fastest, fully curing in seconds to a few tens of seconds; ambient cure is slowest, needing 8–10 h+ in cold winter conditions; heat cure gives the best overall performance where wide-temperature or aging resistance matters.
Request Technical Documentation or Consult an Application Engineer
Receive product documentation and customized formulations. Please provide accurate information for verification.
Recommended Advanced Materials
Explore more proven SCITEO solutions for other critical application environments to close the loop on microelectronics safety.

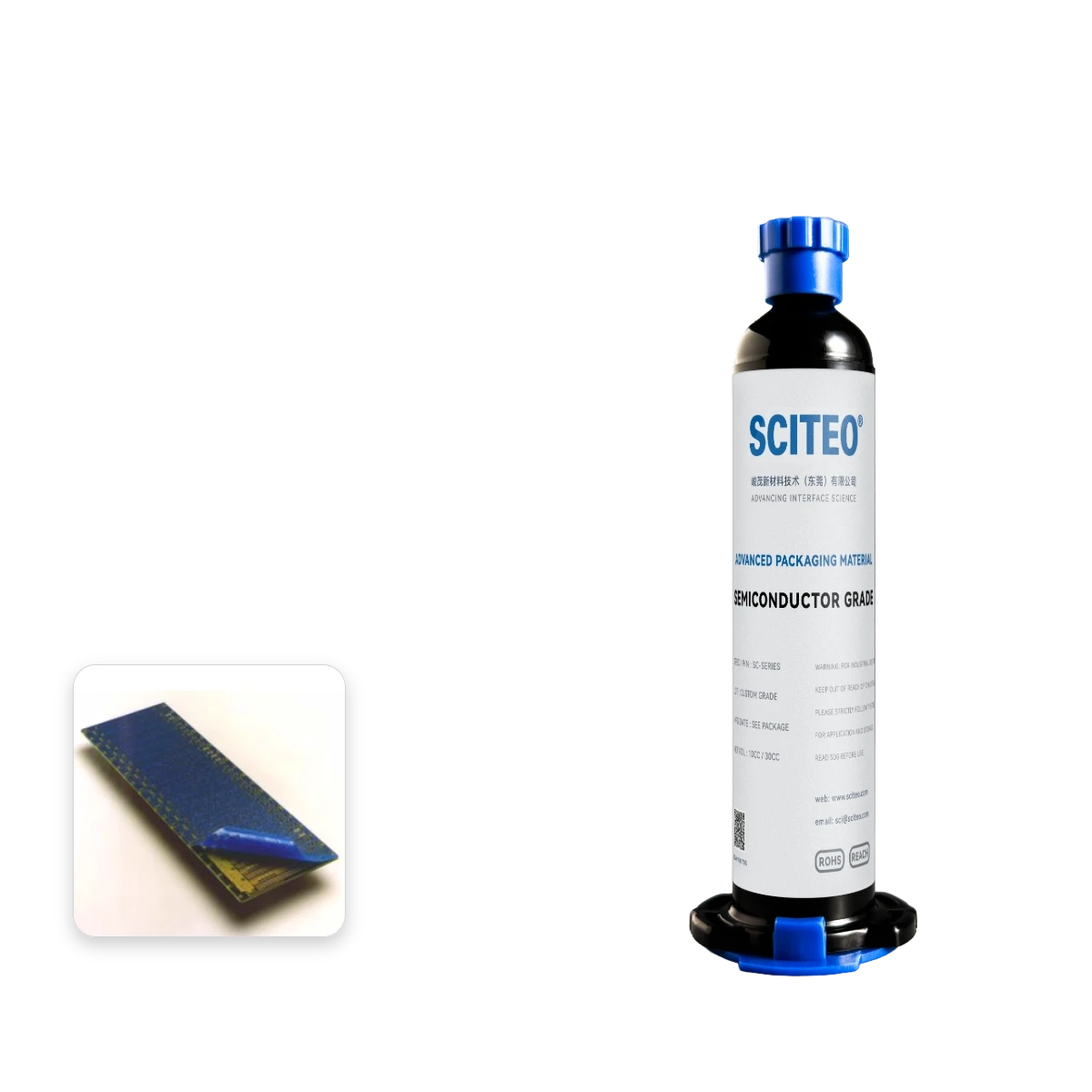

SC6301 Temporary Bonding Adhesive — Semiconductor-Grade, 280 °C PVD/CVD, Acid/Alkali pH1-13, Peel-Clean Removal
Temporary bonding series. 280 °C reflow/PVD/CVD compatible. pH 1–13 acid/alkali 60-min. Low modulus, high elongation, elastic peel-clean removal. Multiple viscosities.
SC633 Long-Term 400 °C Potting Compound — Thermal, Insulating, Acid/Alkali-Resistant, Single-Component
Long-term 400 °C+ potting. 2.5 W/m·K thermal, insulating, acid/alkali/solvent resistant, dense, void-free fill, boil-proof with no delamination, zero high-temp outgassing. Heat aging 360 h at 400 °C: 96% shear-strength retention.

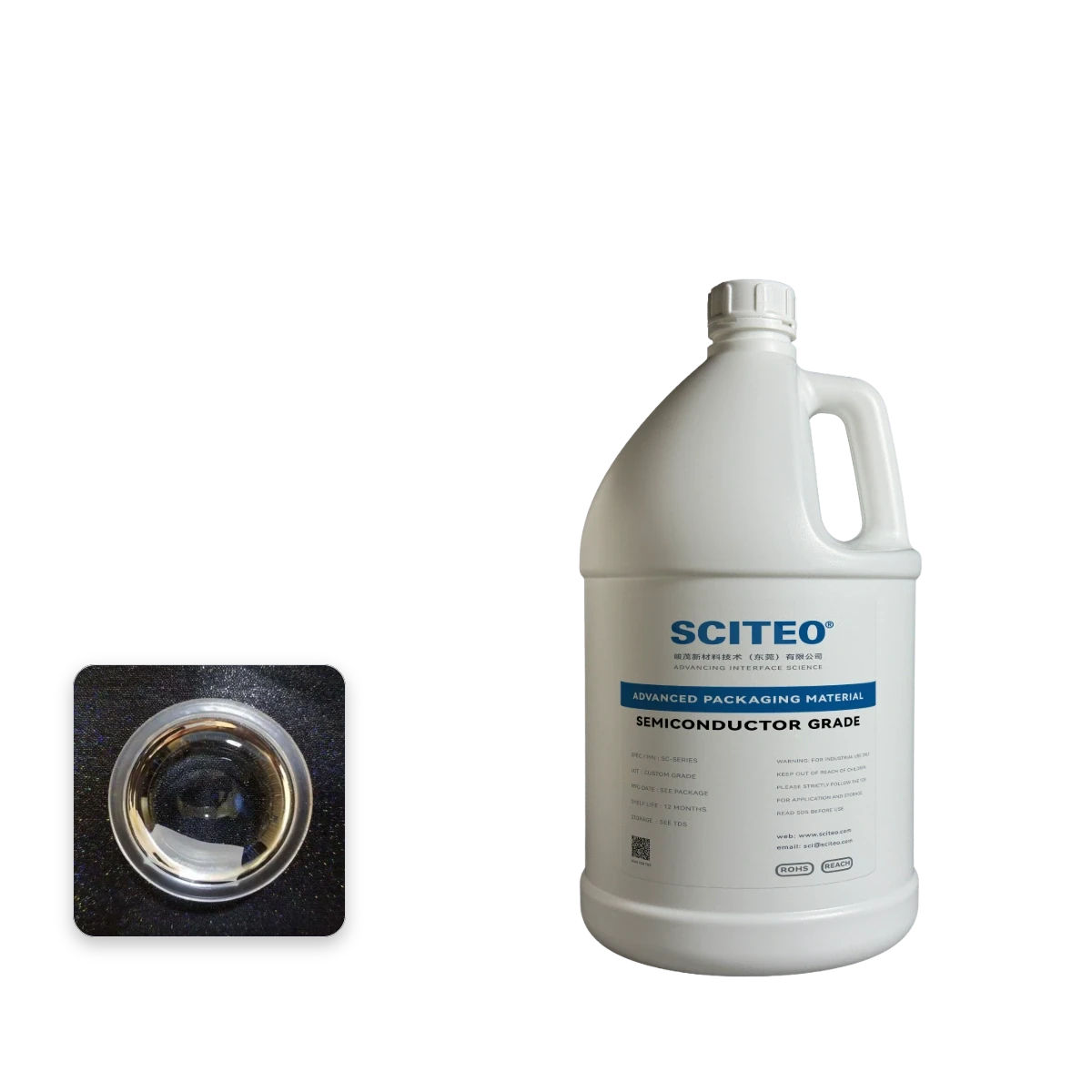

SC6004 >90D Ultra-Hard Transparent Epoxy — Two-Component, Abrasion-Resistant, Flowable Optical Seal
