SC633 Long-Term 400 °C Potting Compound — Thermal, Insulating, Acid/Alkali-Resistant, Single-Component
Long-term 400 °C+ potting. 2.5 W/m·K thermal, insulating, acid/alkali/solvent resistant, dense, void-free fill, boil-proof with no delamination, zero high-temp outgassing. Heat aging 360 h at 400 °C: 96% shear-strength retention.
Semiconductor process, wafer fabrication, high-end sensors and power modules — long-term high-temperature insulation and thermal conduction.
- Thermal Conductivity
- 2.5 W/m·K
- Temperature Range
- −40 °C–600 °C
- Cure Condition
- 150 °C / 30 min
- Viscosity @ 25 °C
- 3000 mPa·s
SCITEO Rigorous Standards: Qualified under GJB 150 environmental reliability testing by Zhenhua, CETC, and CAC, delivering mission-critical reliability.
Engineered as high-reliability domestic qualified alternatives for semiconductor and defense manufacturing clusters across Shanghai Zhangjiang, Xi'an, Chengdu, and Wuxi.
Specifications Don't Match Your Operating Conditions?
Only the baseline series is shown here. SCITEO's undisclosed archive holds formulations engineered for extreme environments. Contact us — our application engineers will match you precisely.
High Reliability Scenarios
Core positioning and partial application demonstration of this product under complex operating conditions.

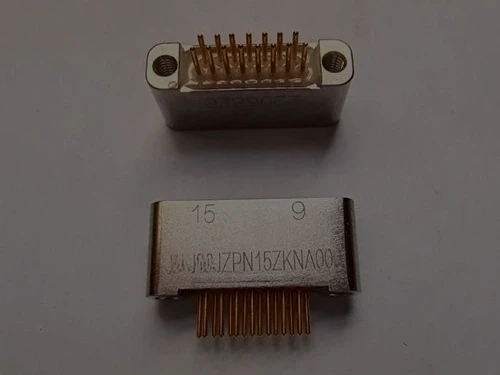

Military Connector Potting

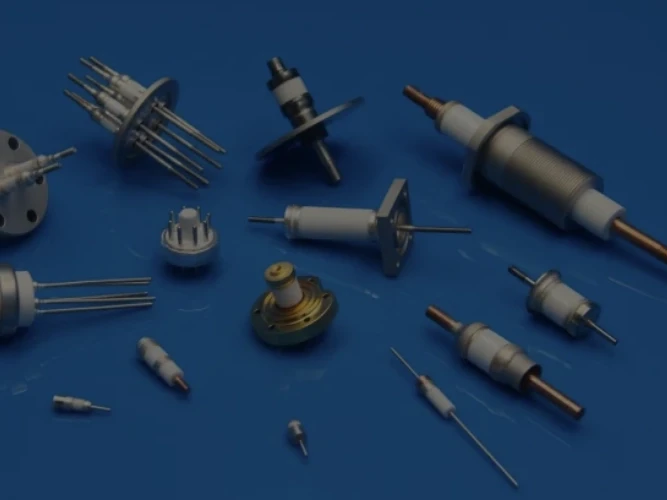

Ceramic Sensor Filling

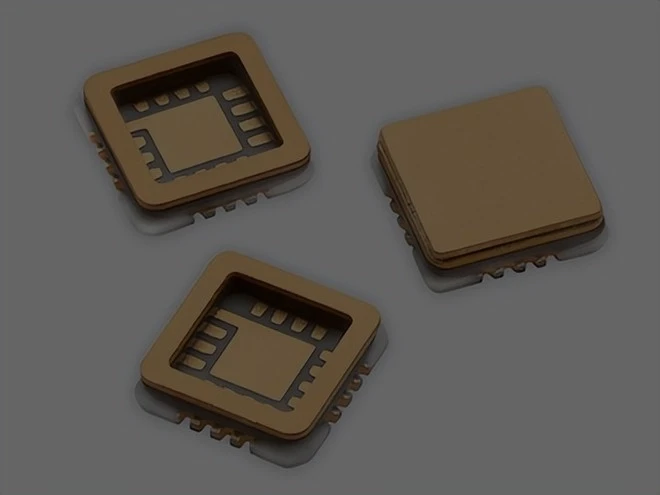

Military Sensor Potting
Application Engineer FAQ
A structured brief from SCITEO covering physical properties, application standards, and related specifications.
What makes SC633 different from standard potting compounds?
A peak above 600 °C with no discoloration, cracking or powdering under long-term continuous duty; insulating and thermally stable, with 24 h+ acid, alkali and solvent resistance.
Benefits of zero outgassing?
Ionic species released at temperature deposit on glass and plated metal and contaminate PVD vacuum chambers; enclosed-cavity outgassing can also induce micro-cracks. SC633 is dry-process compatible.
Request Technical Documentation or Consult an Application Engineer
Receive product documentation and customized formulations. Please provide accurate information for verification.
Recommended Advanced Materials
Explore more proven SCITEO solutions for other critical application environments to close the loop on microelectronics safety.
SC6080 Thermal Potting Epoxy — High-Hardness, RT-Cure, Insulating, Low-Viscosity, Two-Component
Thermal series. Two-component, RT-cure. Bonds metal, ceramic, glass. High hardness (86D), impact-resistant, insulating. 2.0 W/m·K, 3200 MPa modulus, low viscosity.
SC6002 280 °C Potting Epoxy — 2.5 W Thermal, Low-CTE, Insulating, 30 MPa, Two-Component
Low-viscosity self-leveling, 280 °C, 30 MPa bond, 2.5 W/m·K, HB flame-retardant insulating. Low CTE compatible with varied substrates. 1000 thermal cycles (−40 to 125 °C): 88% shear retention; damp-heat 1000 h (85 °C / 85% RH): 80% shear retention.
SC3960 −70 °C Cryogenic Epoxy — Thermal, High/Low-Temp Cycling, 96D Ultra-Hard, Potting & Bonding
SC3960 cryogenic epoxy. −70 °C no cracking, Mil-Std pass. 180 °C high-temp, 1.5 W/m·K thermal. 96D hardness: 200 MPa compressive, 120 MPa flexural. Bonds military & automotive-grade parts. 1000 thermal cycles (−40 to 125 °C): 96% shear retention.
