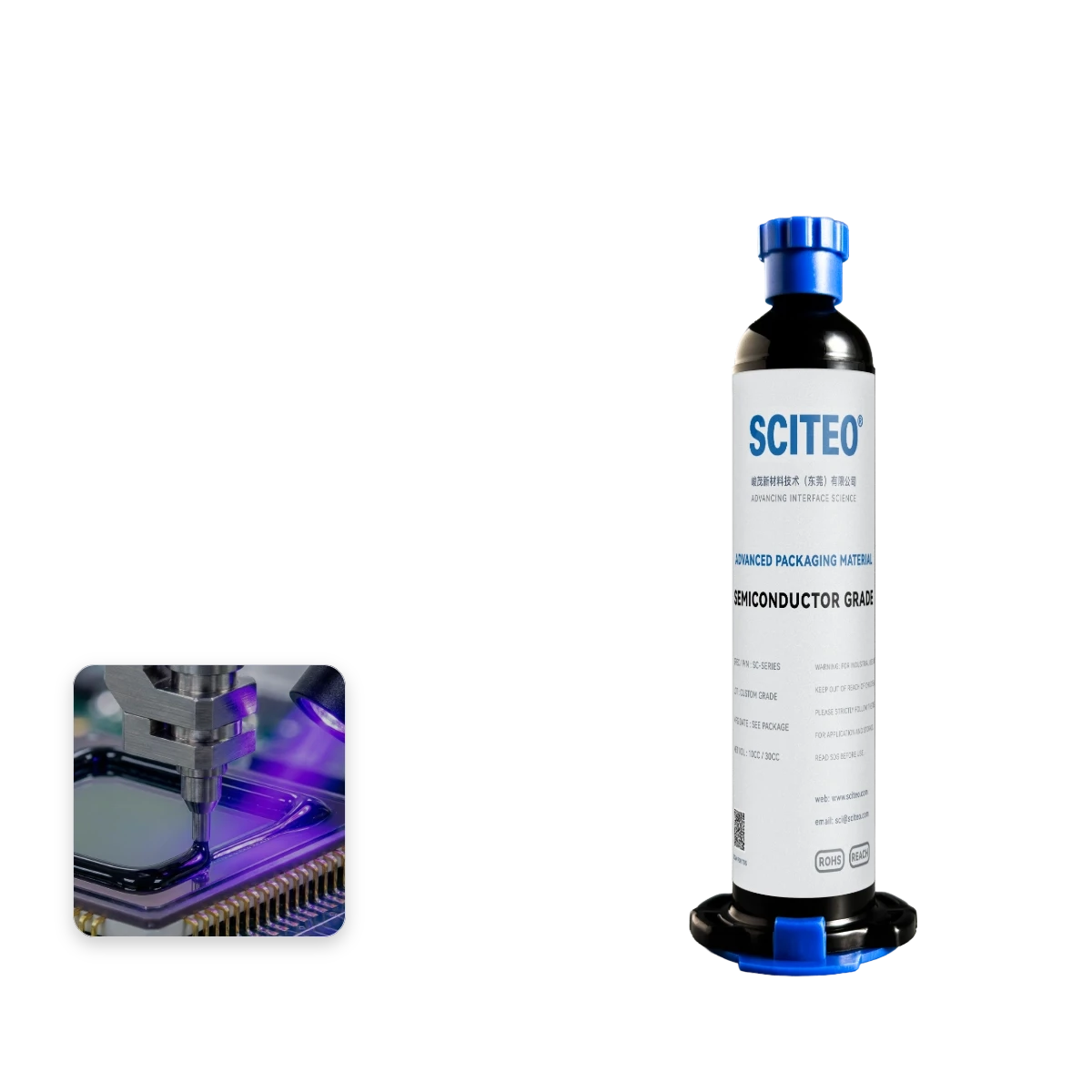

SC6390 UV+Thermal Dual-Cure Adhesive — Light/Heat Cure, Anti-Humidity Aging, Bonding, Sealing, Insulating
Dual-cure for complex geometries, low-transmittance substrates. Eliminates shadow-area uncure. Stronger than UV-only. Multiple grades for semiconductor, optical, component needs.
Semiconductor chips, optical components, LiDAR and precision assemblies — bonding, sealing and fixation.
- Shear Strength
- 16 MPa
- Temperature Range
- −40 °C–180 °C
- Cure Condition
- UV 5 s / 80 °C / 10 min
- Viscosity @ 25 °C
- 5000–200000 mPa·s
SCITEO Rigorous Standards: Qualified under GJB 150 environmental reliability testing by Zhenhua, CETC, and CAC, delivering mission-critical reliability.
Engineered as high-reliability domestic qualified alternatives for semiconductor and defense manufacturing clusters across Shanghai Zhangjiang, Xi'an, Chengdu, and Wuxi.
Specifications Don't Match Your Operating Conditions?
Only the baseline series is shown here. SCITEO's undisclosed archive holds formulations engineered for extreme environments. Contact us — our application engineers will match you precisely.
High Reliability Scenarios
Core positioning and partial application demonstration of this product under complex operating conditions.

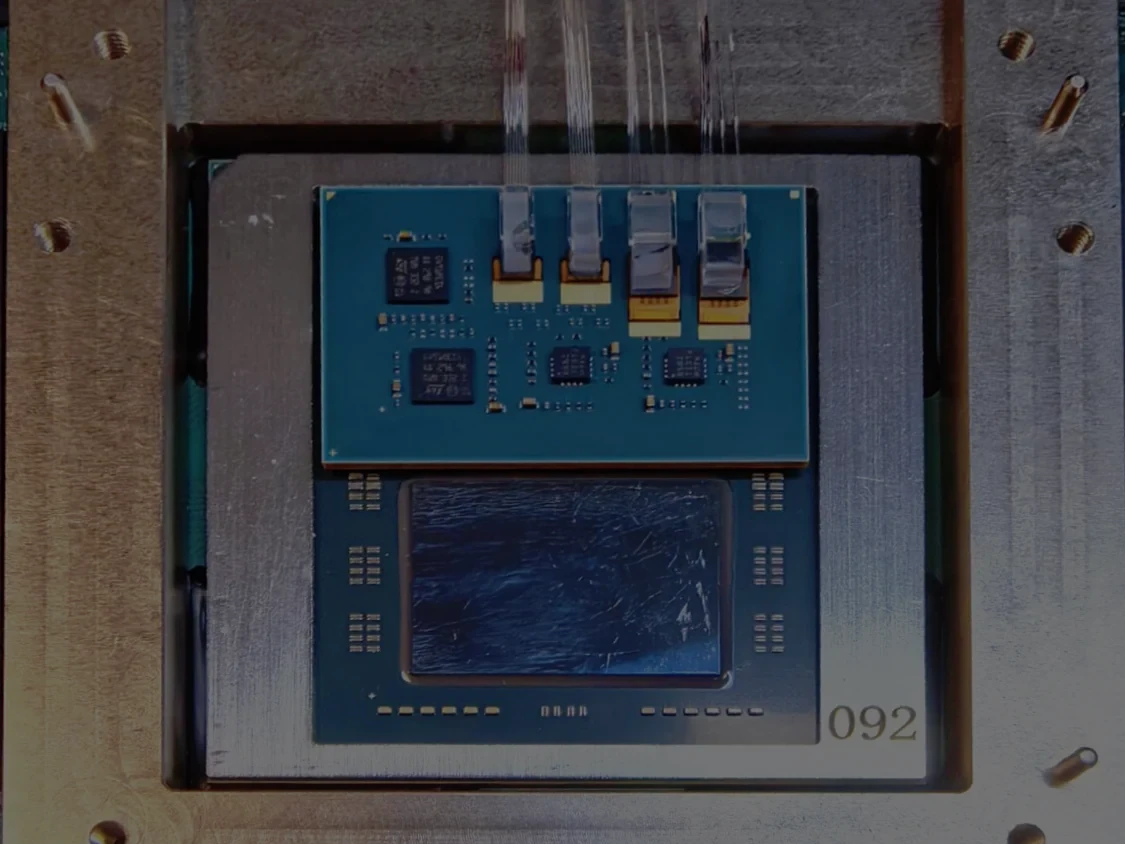

Semiconductor Die Attach

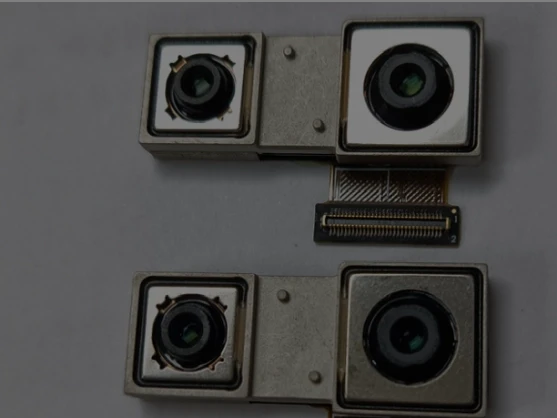

Optical Packaging

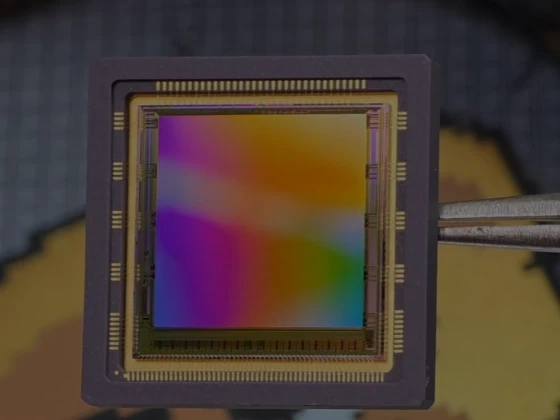

Image Sensor Sealing
Application Engineer FAQ
A structured brief from SCITEO covering physical properties, application standards, and related specifications.
Benefits of dual-cure over UV-only?
Dual UV/heat cure delivers higher bond strength across a wider range of substrates and geometries, and that stronger bond translates into better aging resistance, hermeticity, and fracture resistance.
Storage requirements?
Because it contains a latent thermal initiator, dual-cure is more storage-sensitive than ambient-cure grades: store at −20 to 8 °C in black, light-blocking packaging to prevent photo-initiation and premature heat triggering.
Request Technical Documentation or Consult an Application Engineer
Receive product documentation and customized formulations. Please provide accurate information for verification.
Recommended Advanced Materials
Explore more proven SCITEO solutions for other critical application environments to close the loop on microelectronics safety.
SC6106 Low-Temp Cure Epoxy — 60–80 °C Thermal Cure, Low Moisture Absorption, Single-Component Insulating
Single-component, fast low-temp cure. Reflow-compatible, high bond strength; bonds ceramics, glass, metals and platings. Minimum cure temperature 55 °C.

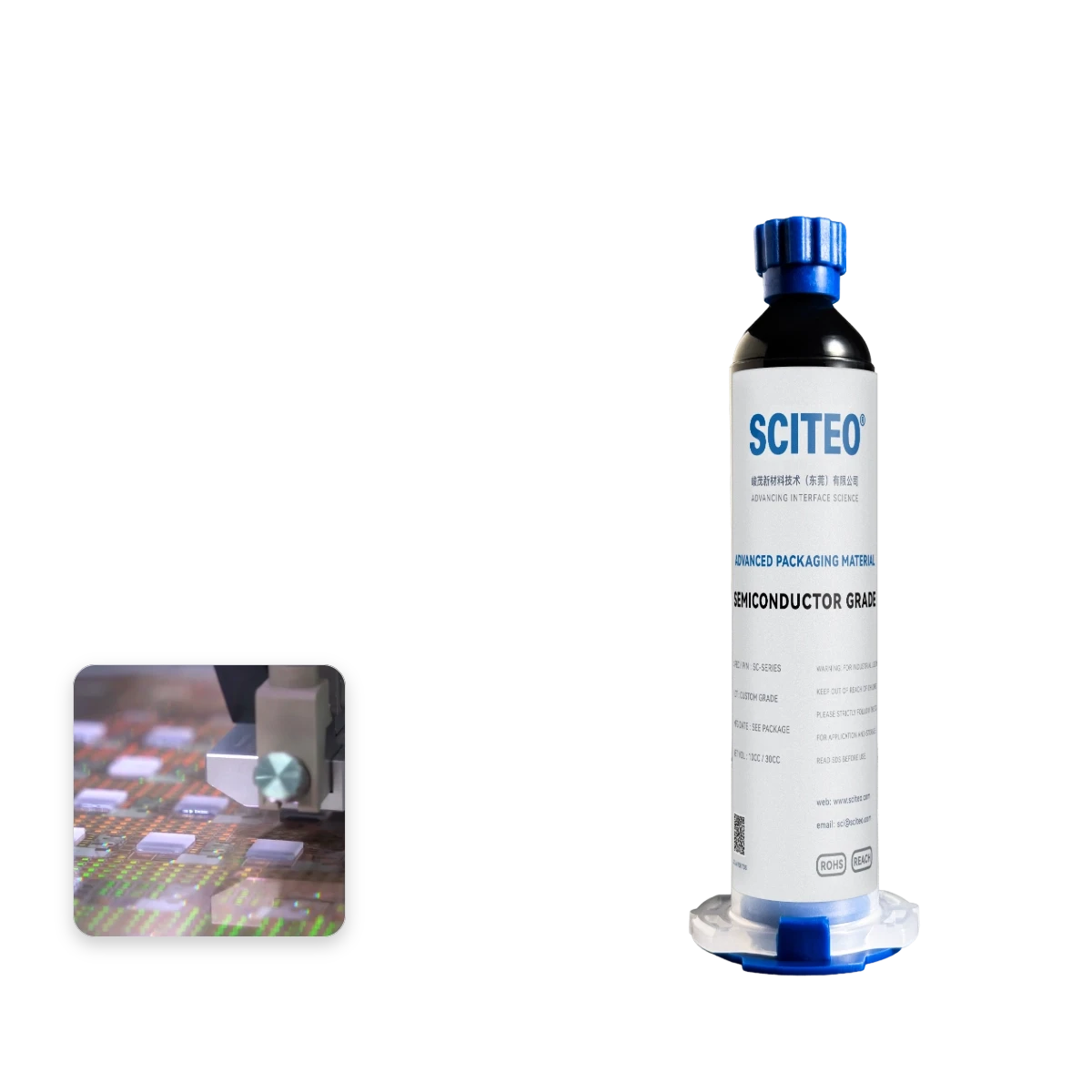

SC6707 Chip-Package Underfill Epoxy — Low-CTE, High-Tg, High-Modulus for Advanced Packaging
Chip-grade underfill. CTE from 13 ppm, low shrinkage, multiple Tg grades (>150 °C). Single-component, fast heat-cure, reworkable. SIP/CSP/Flip-chip compatible. Multiple viscosity/flow/color/temp variants. 1000 thermal cycles (−40 to 125 °C, 150 °C-Tg grade): 88% shear retention.

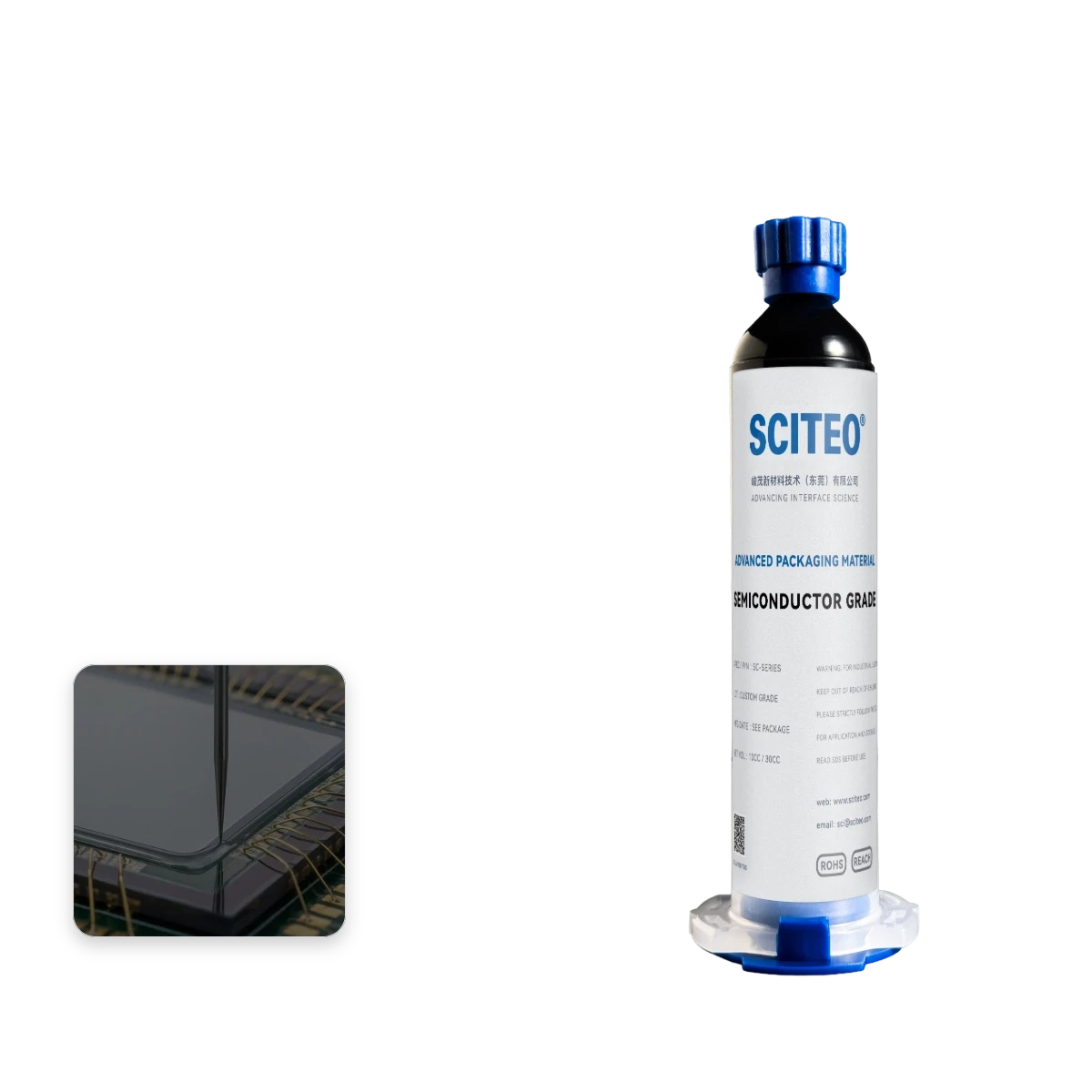

SC6724 CMOS Sensor Epoxy — CIS Chip Package, High-Temp, Bonding, Sealing, Anti-Aging
Optical adhesive. Bonds glass, ceramic, Au-plated metal. 280 °C multi-reflow compatibility, maintains post-reflow hermeticity. Low water absorption, insulating, multi-viscosity, 2800 MPa modulus. 500 thermal cycles (−40 to 125 °C): 88% shear retention; damp-heat 1000 h (85 °C / 85% RH): 75% shear retention.
