SC610 Extreme-Temp 500 °C+ Adhesive — Low-CTE, Insulating, 1000 °C Peak Rigid Bonding & Sealing
Long-term service from 500 °C upward, with a 1,000 °C/2 h peak. Multiple viscosities. Anti-aging and thermal-cycling stability, insulating, low CTE. No outgassing or volatiles under vacuum or at temperature; non-corrosive and resistant to chemical solvents, acids and alkalis for 24 h+. Heat aging 168 h at 500 °C: 85% shear-strength retention. CVCM <0.005%.
Sensors, high-power assemblies, semiconductor wafer fabrication and military lasers — bonding, sealing and filling.
- Temperature Range
- −45 °C–1000 °C
- CTE below Tg
- 7.1 ppm/°C
- Shear Strength
- 16 MPa (etched Al)
- Volume Resistivity
- 1×10¹⁵ Ω·cm
SCITEO Rigorous Standards: Qualified under GJB 150 environmental reliability testing by Zhenhua, CETC, and CAC, delivering mission-critical reliability.
Engineered as high-reliability domestic qualified alternatives for semiconductor and defense manufacturing clusters across Shanghai Zhangjiang, Xi'an, Chengdu, and Wuxi.
Specifications Don't Match Your Operating Conditions?
Only the baseline series is shown here. SCITEO's undisclosed archive holds formulations engineered for extreme environments. Contact us — our application engineers will match you precisely.
High Reliability Scenarios
Core positioning and partial application demonstration of this product under complex operating conditions.

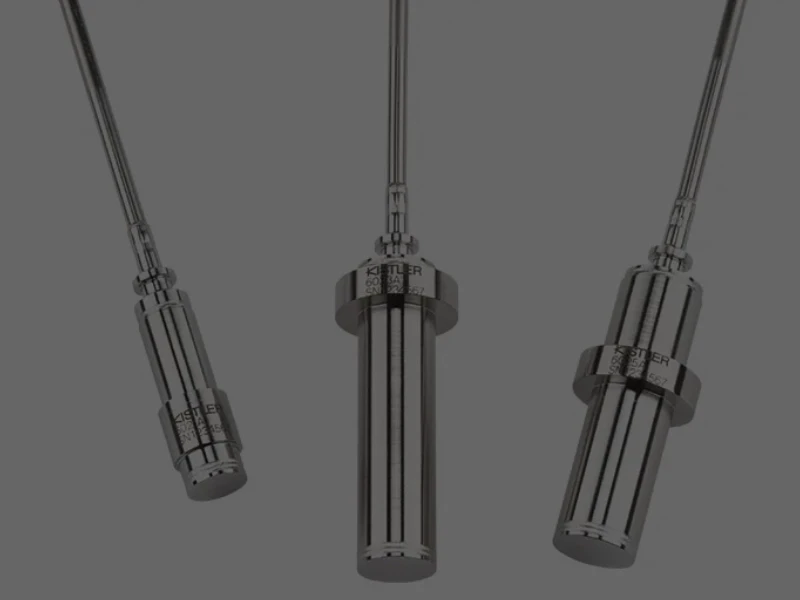

Sensor Bonding

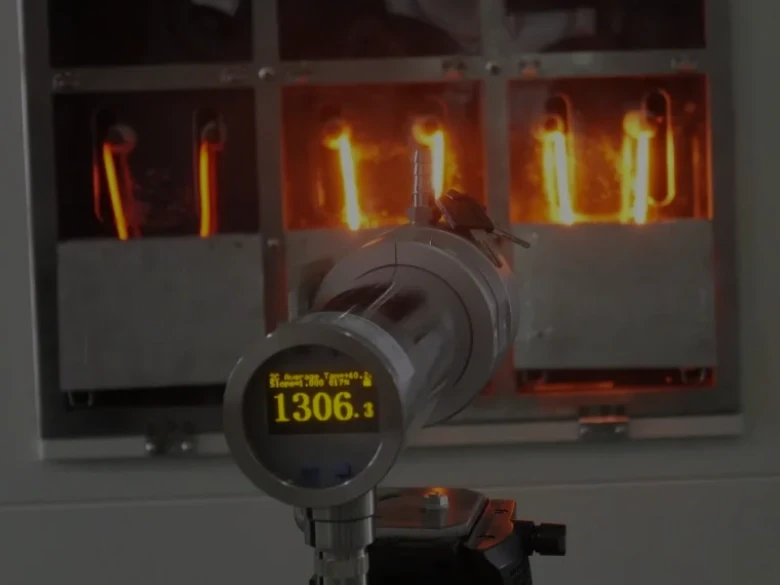

High-Temperature Limit Test

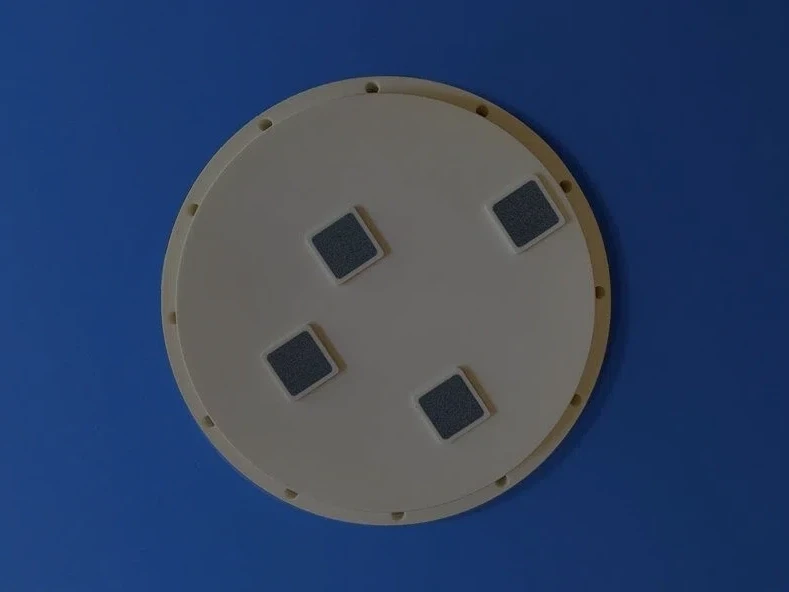

Military Equipment Sensors
Application Engineer FAQ
A structured brief from SCITEO covering physical properties, application standards, and related specifications.
Long-term performance vs. other high-temp adhesives?
It carries a continuous rating from 500 °C upward, holds its insulation at temperature and releases no outgassing or volatiles in vacuum or under heat — a direct fit for dry-process tools. Ultra-high-temperature grades reach a 1700 °C peak without softening.
Suitable for <500 °C? Acid/alkali resistance?
Yes. Stable over 720 h at 300–400 °C continuous duty, with 7.1 ppm/°C CTE already validated at wafer-level processes and 24 h immersion in 10% acid/alkali solutions without degradation.
Request Technical Documentation or Consult an Application Engineer
Receive product documentation and customized formulations. Please provide accurate information for verification.
Recommended Advanced Materials
Explore more proven SCITEO solutions for other critical application environments to close the loop on microelectronics safety.

SC633 Long-Term 400 °C Potting Compound — Thermal, Insulating, Acid/Alkali-Resistant, Single-Component
Long-term 400 °C+ potting. 2.5 W/m·K thermal conductivity, electrically insulating, resistant to acids, alkalis and solvents. Dense, void-free fill that survives 24 h boiling water without delamination and stays clean at temperature with no outgassing. Heat aging 360 h at 400 °C: 96% shear-strength retention; CVCM < 0.002%.

SC6300 High-Temp 300 °C Single-Component Epoxy — Insulating, Thermal-Cure, High-Strength Bonding
Single-component, ready-to-use. Heat-cure for high-strength bonding (29 MPa), 84D hardness, shock-resistant, insulating, withstands multiple reflow cycles. Dispensable & printable. 4.2 GPa modulus; HTSL 72 h at 300 °C: 92% shear retention; HTSL 1000 h at 250 °C: 85%; 1000 thermal cycles (−40 to 125 °C): 85%; TML < 0.32%, CVCM < 0.02%.

SC6219 60 W Thermal+Conductive Epoxy — Single-Component, High Bond, Low-CTE, Low Resistivity
Ultra-high thermal+conductive epoxy. 60 W/m·K, 25 ppm low-CTE, 0.000006 Ω·cm ultra-low resistivity. High bond, heat-cure. Bonds metal/ceramic/glass/platings. Dispensable & printable. 1000 thermal cycles (−40 to 125 °C): 90% shear retention; damp-heat 1000 h (85 °C / 85% RH): 78% shear retention.
